OKI: ML674000



JTAG Debugger



$895

Tool Features:


   Run Control (Run, Stop, Breakpoints, Single Stepping) Memory Read/Write access)
   RTOS Support

   Flash programming of internal flash directly supported

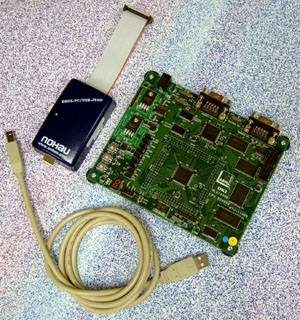

   Flash support for the Oki ML674000 CPU Evaluation Board
   Support for Special Function Registers (SFRs)

Chip Feature overview:

  • ARM7TDMI
  • Max CPU clock: 33MHz
  • 8 KB SRAM
  • External memory controller
  • 24 interrupt sources
  • DMA: 2 channels with external access
  • Timers: 7 x 16-bit timers
  • Watch-Dog Timer: dual stage 16 bit
  • PWM: 2 x 16-bit channels
  • Serial Interfaces: SIO, UART
  • GPIO: 32 bits
  • AD Converter: 8 x 10-bit channels
